AP-12BT-2 Double Heads Rotary Fill + Cap Machine
AP-12BT-2 Double Heads Rotary Fill + Cap Machine2
7f7c7be0-e4fd-4dfa-983d-a2b083479e8d
3f6f591c-9636-4c7c-88f9-cfd41393f277
ShapePouch1
Spout pouch1

Driving logistics forward

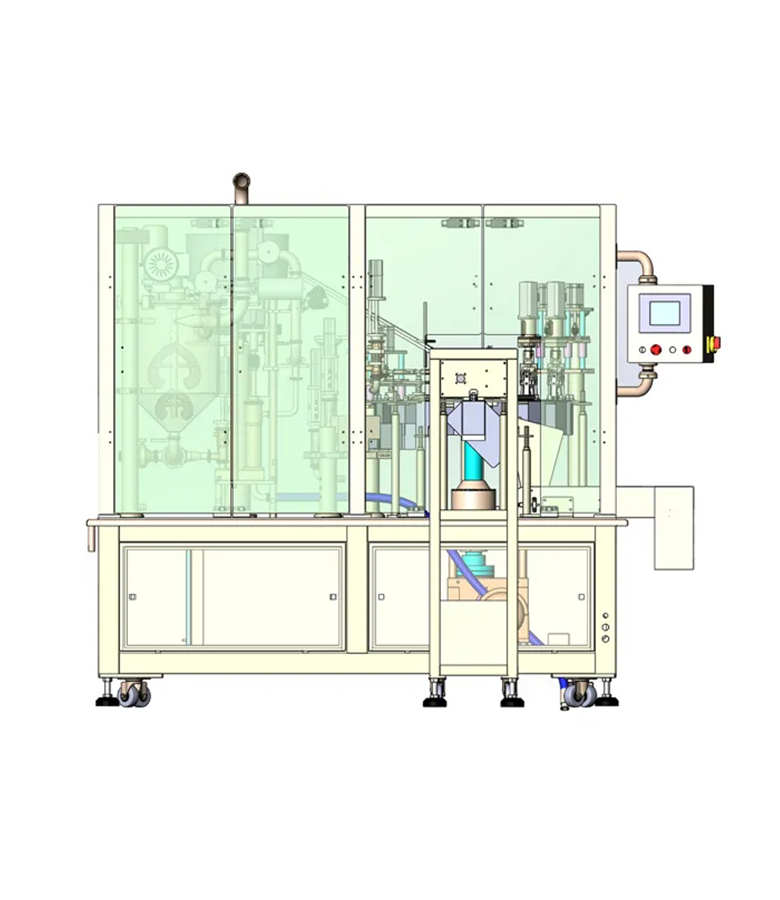

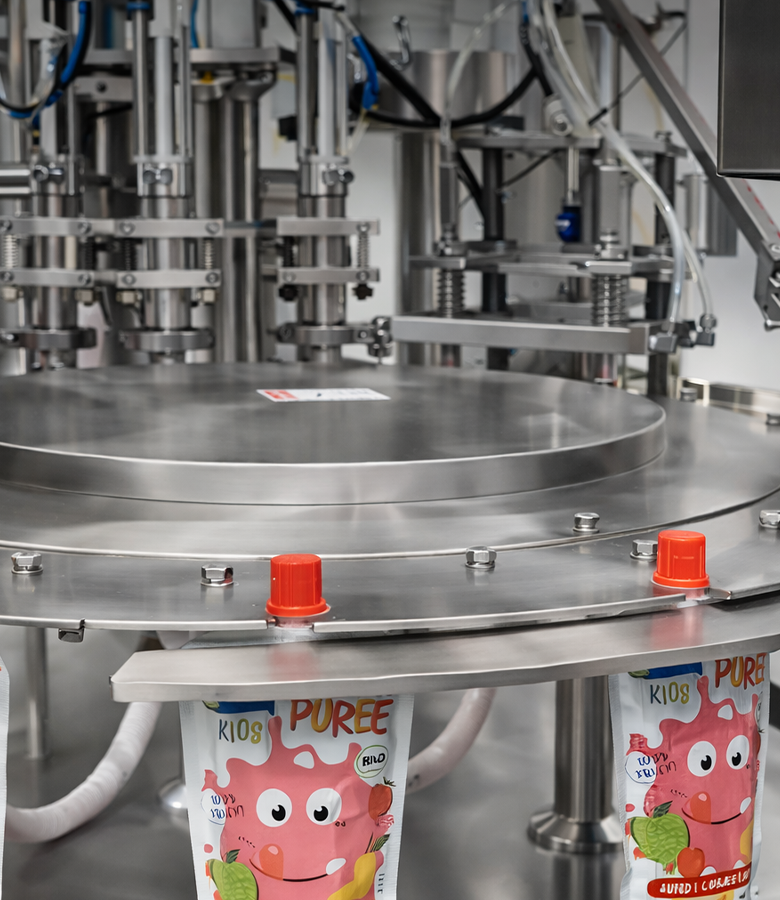

Double Heads Rotary Fill + Cap Machine

Fully automatic high-speed rotary filling and capping for premade spout pouches. 304 stainless steel construction, PLC + 10″ HMI, and CIP-ready — built for food, dairy, beverage and industrial liquid lines.

30

Bags / Min

12-250

mL Fill Range

2.8

kW Power

2

Fill Heads

Request a Quote
View Specs

Engineering Advantages

Built for Demanding Production Lines

Fully Automatic End-to-End

Bag feeding, positioning, quantitative filling, N₂ flushing, bag cleaning, cap sorting, capping and withdrawal – zero manual intervention required/

304 stainless steel construction
Full food-grade 304 SS construction complies with global food, dairy and beverage hygiene standards — corrosion-resistant and easy to clean.
Variable Frequency Drive
Automatic VFD operation enables precise speed adjustment to match bag sizes, fill volumes and production throughput requirements on the fly.
PLC + 10″ Touch Screen HMI
Intuitive large-screen HMI for real-time monitoring, parameter setting, recipe management and fault diagnostics without specialist training.
CIP Cleaning System Ready
Connect directly to CIP circuits to eliminate manual disassembly for cleaning. Dramatically reduces product changeover time on high-throughput lines.
Modular & Configurable
Air purification system, safety door switch and other modules can be added or removed to precisely match your facility’s production requirements.

Industries & Products

Suitable Appplications

Engineered for a wide range of liquid and semi-liquid products across food, beverage and industrial packaging.

Food Products

FRUIT AND VEGETABLES

MEAT AND PULTRY

CHIPS AND SNACKS

BAKERY PRODUCTS

FROZEN FOODS

COFFEE

DIARY PRODUCTS

JUICES AND DRINKS

PASTES AND JAMS

PULSES AND SPICES

DRY FRUITS

POWDERS AND SMALL GRANULATES

CHEESES

PASTA AND RICE

How It Works

8-Step Automated Process

From empty bag to sealed, capped product — every step fully automated in one continuous rotary flow.

Model No. AP-6BT-XL
Pouch Size (Length) 200–550mm
Pouch Size (Width) 200–400mm
Speed 10–30 pcs/min
Voltage 380V / 3 Phase, 50Hz
Power 4.7 kW
Air Consumption 100 L/min
Overall Dimension L3178 × W2268 × H1966mm
Voltage 3Ph 380V / 3Ph 220V
Total Power 2.8 kW

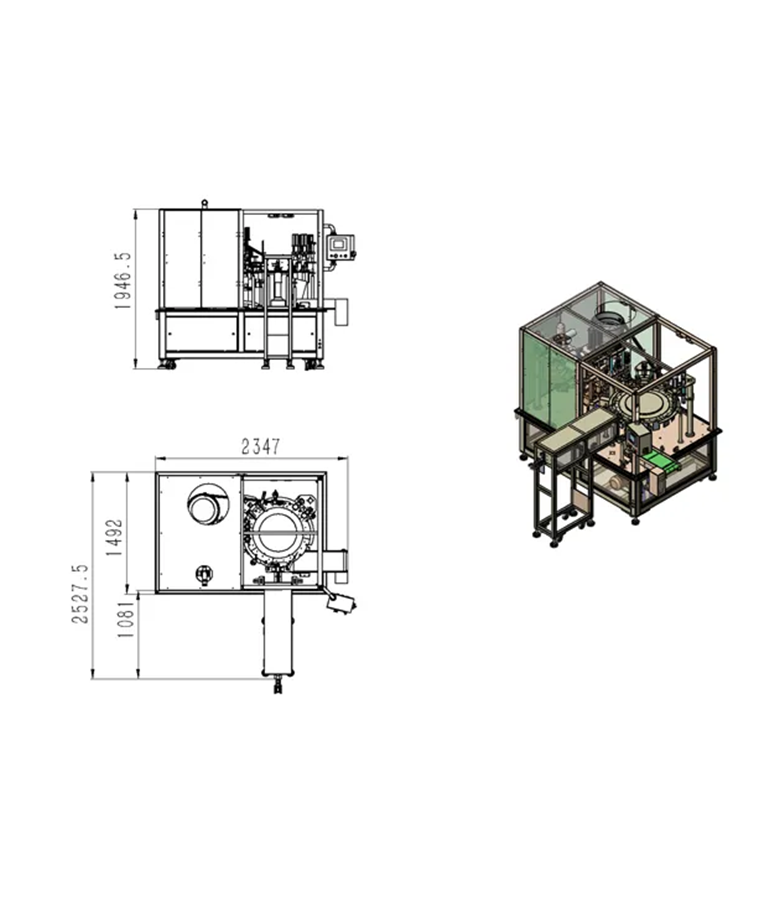

Machine Size (L×W×H) 2528 × 2347 × 1947 mm
LENGHT
2528 mm
WIDTH
2347 mm
LENGHT
1947 mm
Filling Volume Range 10 – 250 mL
Bag Length Range 10 – 250 mm
Bag Width Range 10 – 145 mm

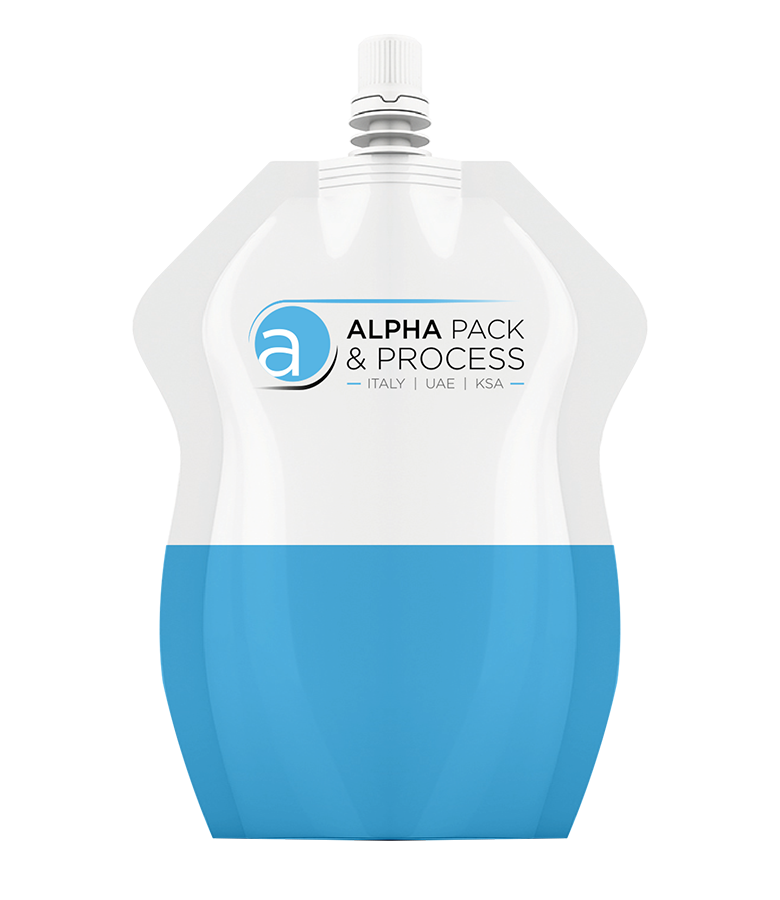

Package Types Premade Bags with Spout · Doypack with Spout · Shaped Doypack
Applications Coffee · Dairy · Juice · Edible Oil · Jelly · Condiments · Detergentsz

How It Works

8-Step Automated Process

From empty bag to sealed, capped product — every step fully automated in one continuous rotary flow.

  • Bag Feeding
    Automatic magazine bag pick-up & transfer
  • Positioning
    Precise rotary station alignment
  • Quantitative Filling
    Dual head accurate metered fill
  • N₂ Flushing
    Optional oxygen displacement
  • Bag Cleaning
    Spout mouth cleaning before cap
  • Cap Sorting
    Auto cap feed, orient & sort
  • Capping
    Secure torque-controlled sealing
  • Discharge
    Auto withdrawal & level control
